20. Auto-creation for Connection Line

This feature is designed for applications like workflow diagram system. It allows creating connection lines automatically among shapes which are selected randomly from canvas. Buttons on the toolbar are shown below:

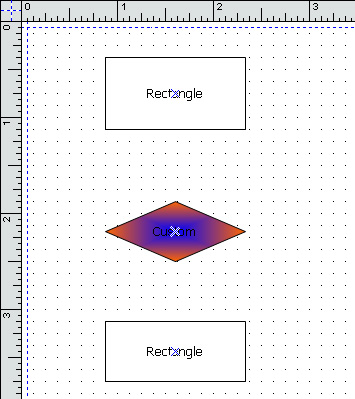

Before link:

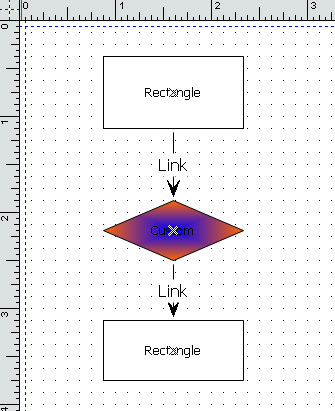

After link:

All connection lines are labeled. You can edit a label by double clicking the associated connection line.

This operation can be performed by calling corresponding function.
