VC++ .NET Tutorial Programming: Using GDI+ Brushes to Draw Text


 Tom Archer

Welcome to this week's installment of .NET Tips & Techniques on how to perform a practical .NET programming tucancode.net using either C# or Managed C++ Extensions.

One of the examples I wrote in Extending MFC Applications with the .NET Framework illustrated how to store and retrieve BLOB (binary large objects) to and from a SQL Server database. These BLOBs were actually image data that was rendered on the dialog when the user selected them. Since then, I've had numerous requests to illustrate more of the GDI+ capabilities from the Managed Extensions to C++ for .NET (MC++). Therefore, in this first in a series of GDI+ articles, I illustrate how to draw text (both hatch and gradient) using GDI+ brushes.

Basic Steps to Drawing Text with Brushes

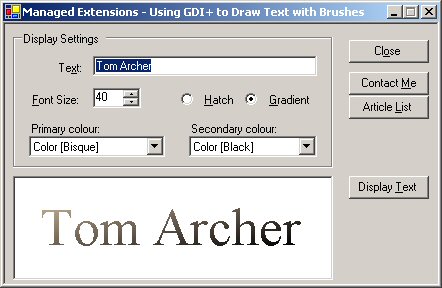

Provided with this article is a demo application that allows the user to specify a text value, the font size, whether the text is drawn with a hatch or gradient brush, and the colors to use in drawing the text. Here's a screen shot of that application:

Here are some basic steps for drawing either hatched or gradient text using GDI+:

  1. Add an event handler for the control's Paint event.
    You should do your drawing in this method (or a method called from this method) so that your control is repainted properly.



  2. Obtain a Graphics object.
    For those of you familiar with drawing on device contexts, the Graphics object is the .NET encapsulation of a drawing surface. When drawing on a control—such as a PictureBox—you could call the PictureBox::CreateGraphics method as it returns a Graphics object for you to draw on. In fact, I've seen this technique on various demo/sample applications on the Web. However, the problem with it is that the Graphics object is not persistent. Therefore, the control doesn't paint itself properly when the user switches to another application and then back again. So, you should use the Graphics object of the PaintEventArgs object that is passed to the control's Paint method.
    private: System::Void picText_Paint(System::Object *  sender,
                                        System::Windows::Forms::
                                        PaintEventArgs *  e)
    {
       ...

       Graphics* g = e->Graphics;
  3. Instantiate a Font object.
    Of the 13 different Font constructors, the most basic one requires that you supply the font type face name and the font size. In the following example, I create a 20 point, regular (as opposed to bold, italic, and so forth) font using the "Times New Roman" type face:
    using namespace System::Drawing;
    ...
    Font* font = new Font(S"Times new Roman", 20,
                          FontStyle::Regular);

  4. Measure the text to be rendered. You need to measure the text to render it. As I illustrated in my article Managed Extensions: Measuring Strings, you use the Graphics::MeasureString to accomplish this tucancode.net. This method takes the text to be measured and the font being used and returns a SizeF structure, which simply defines the dimensions needed to draw the text.
    SizeF textSize = g->MeasureString(S"My Sample Text", font);
  5. Instantiate a Brush object.
    You can draw with various types of Brush objects, including HatchBrush, LinearGradientBrush, PathGradientBrush, SolidBrush, and TextureBrush. As the parameters to instantiate the various Brush objects are only slightly different, I won't attempt to cover each and every one. Instead, I'll present examples of the two types of Brush objects (HatchBrush and LinearGradientBrush) that are used in this article's demo application, which allows the user to select the Brush type to use in drawing their specified text.
    // HatchBrush example
    Brush* brush = new HatchBrush(HatchStyle::Cross,
                                  Color::Black, Color::Blue);

    // LinearGradientBrush example
    RectangleF* rect = __nogc new RectangleF(PointF(0, 0), textSize);
    brush = new LinearGradientBrush(*rect,
                                    Color::Black,
                                    Color::Blue,
                                    LinearGradientMode::
                                    ForwardDiagonal);

  6. [Optional] Fill the background.
    You typically need to initialize the background before you draw on it. There are two standard ways of doing this. The easiest is to simply call the Graphics::Clear method and specify the desired color that you will use to fill the entire drawing surface. However, sometimes you need a finer level of control. In those cases, you can use the Graphics::FillRectange method.

    The Graphics::FillRectange method enables you to specify a Brush object of your choosing as well as the exact rectangular coordinates to use. Regarding the Brush object, you can either instantiate a custom Brush or use the SystemBrushes object, which defines property members that are each a SolidBrush representation of a Windows display element. These are the elements that are defined via the Windows Display Properties and include ActiveBorder, ActiveCaption, and so on:

    // Use the Windows-defined color for controls and explicitly
    // state the rectangle coordinates
    g->FillRectangle(SystemBrushes::Control,
                     picText->Left,
                     picText->Top,
                     picText->Right - picText->Left,
                     picText->Bottom - picText->Top);

    // Color the entire drawing surface using White
    g->Clear(Color::White);

  7. Render (Draw) the Text.
    Once you have all the GDI+ objects instantiated, you need only call the Graphics::DrawString method. Here's an example call to that method where I specify the text to render, the Font and Brush objects to use, and exactly where on the drawing surface I want the text displayed:
    // Center the text on the drawing surface
    g->DrawString(txtToDisplay->Text,
                  font,
                  brush,
                  (picText->Width  - textSize.Width)  / 2,
                  (picText->Height - textSize.Height) / 2);


About the Author
I am a Program Manager and Content Strategist for the Microsoft MSDN Online team managing the Windows Vista and Visual C++ developer centers. Before being employed at Microsoft, I was awarded MVP status for the Visual C++ product. A 20+ year veteran of programming with various languages - C++, C, Assembler, RPG III/400, PL/I, etc. - I've also written many technical books (Inside C#, Extending MFC Applications with the .NET Framework, Visual C++.NET Bible, etc.) and 100+ online articles.

Downloads

GDIPlusTextWithBrushes.zip - Download source code - 41 Kb
